The Cobalt-Free Lithium Iron Phosphate (LFP) Battery delivers exceptional safety, reliability, and scalability for both residential and commercial energy storage systems. Built with high-efficiency, high–power density LFP cells and an intelligent BMS, it ensures complete system protection and a long lifespan. Designed for high discharge performance and operating within a wide temperature range (-20°C to 55°C), this IP20-rated battery is both durable and dependable.
Its modular architecture allows for easy expansion — supporting up to 64 units in parallel for a maximum capacity of 327kWh — making it ideal for increasing solar self-consumption. With auto networking, remote monitoring and firmware upgrades, and USB update support, it offers simplified installation and maintenance. Environmentally conscious, the battery uses non-toxic, pollution-free materials, and its 19-inch standard design supports rack-mounted, wall-mounted, or floor-mounted installation, providing flexible, space-saving deployment options.
Specs:

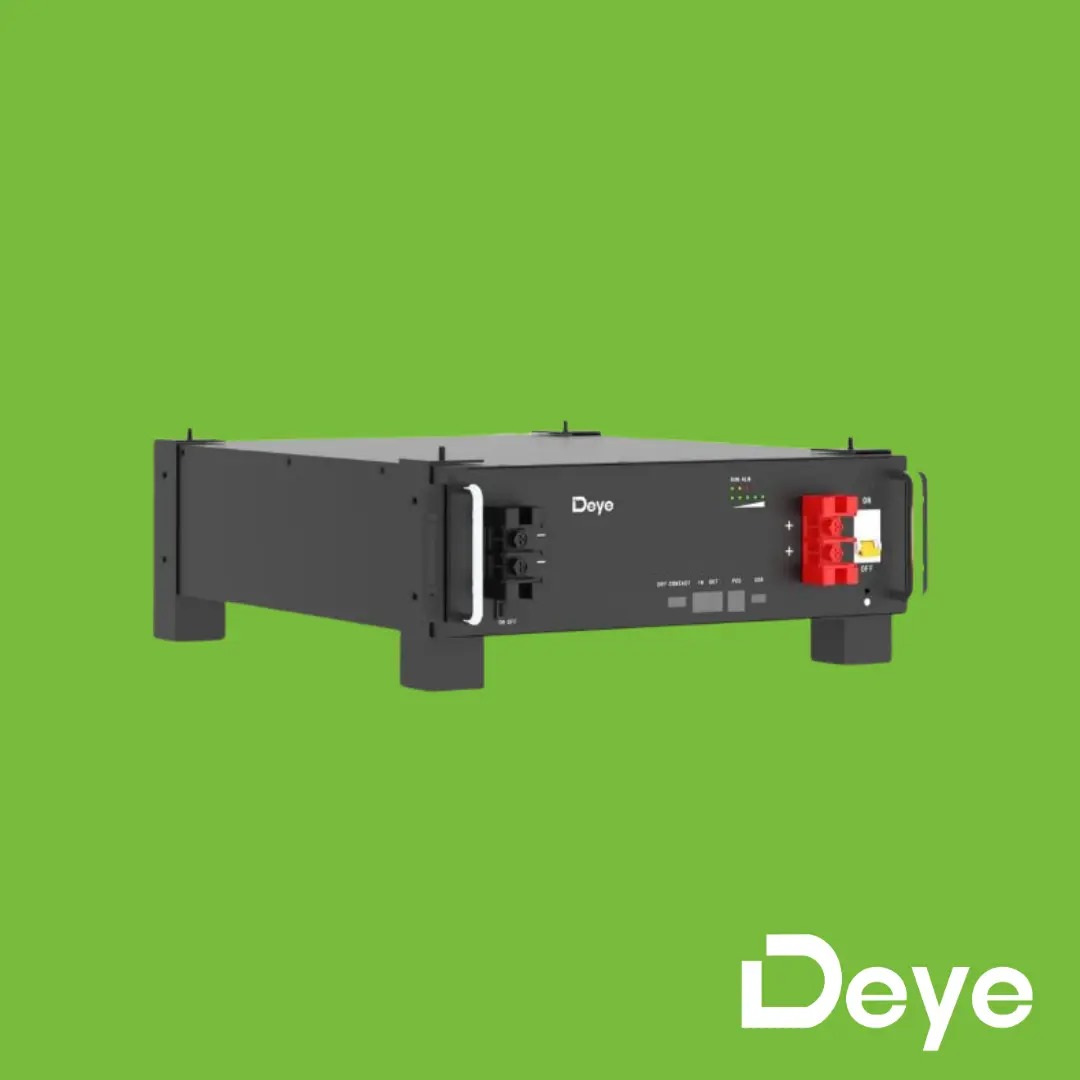

- Model: Deye SE-G5.1
- Battery Chemistry: LiFePO4
- Nominal Capacity: 100 Ah
- Nominal Voltage: 51.2 V
- Operating Voltage: 44.8 V to 57.6 V
- Nominal Energy: 5.12 kWh
- Scalability: Maximum of 64 units in parallel (327 kWh total)
- Charge Current: Max 50 A (Continuous), 100 A (Peak for 10 seconds)
- Discharge Current: Max 50 A (Continuous), 100 A (Peak for 10 seconds)
- Depth of Discharge (DoD): Recommended 80% Dimension: 440 mm x 540 mm x 133 mm (W x D x H)
- Weight: Approx. 44 kg
- Communication Port: CAN2.0, RS485
- IP Rating: IP20
- Operating Temperature: Charge: 0 to 55℃; – Discharge: -20 to 55℃
- Storage Temperature: 0 to 35℃
- Relative Humidity: 95%
- Cycle Life: ≥6000 cycles
