- Integrated MPPT Charge Controller
- Configurable Grid Or Solar Input Priority
- Optional WIFI/ GPRS Remote Monitoring
- Parallel For Scalability
.
Attributes

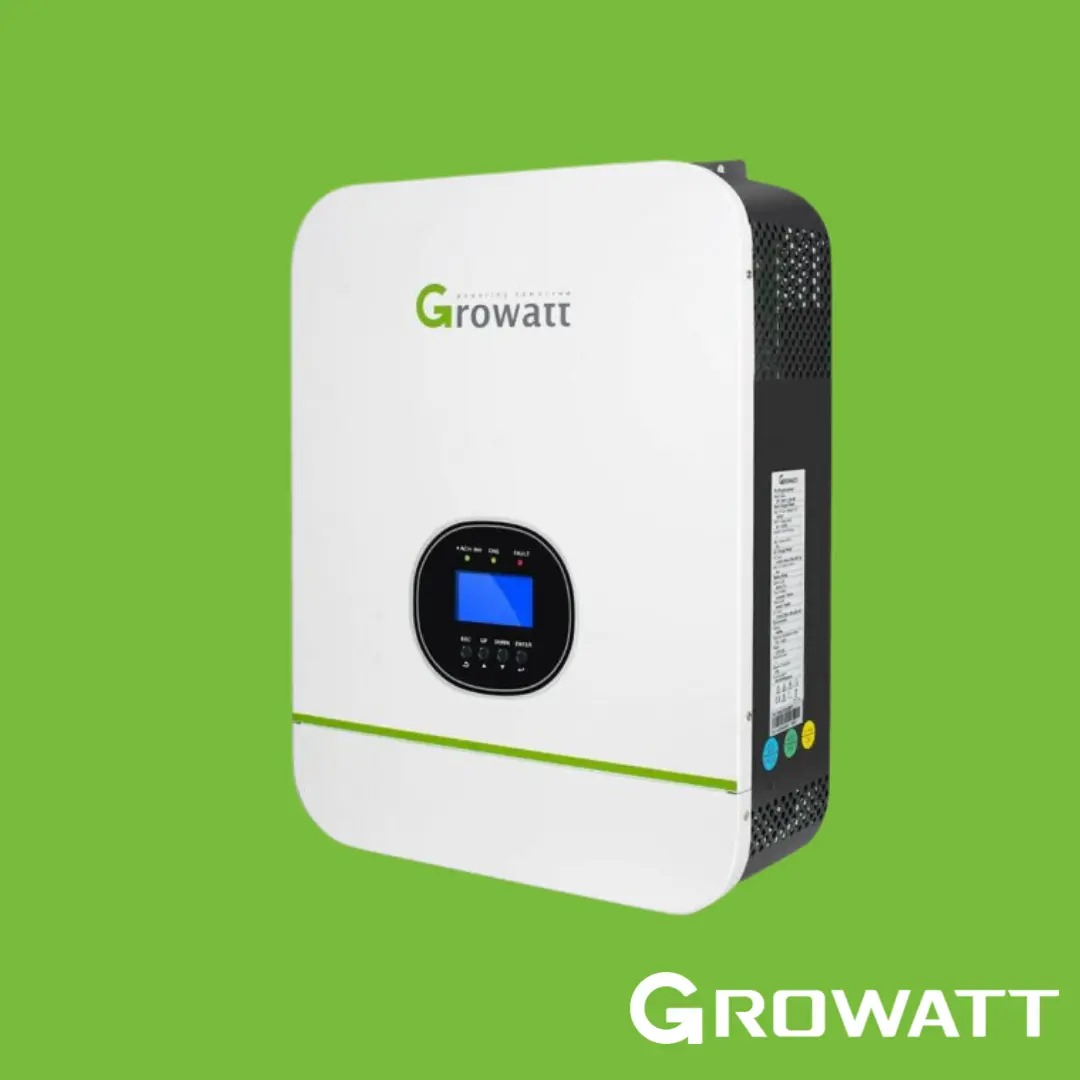

- ModelGrowatt SPF 3000 TL HVM-24
- Battery Voltage24VDC
- Battery TypeLithium/Lead-acid
- Rated Power3000VA/3000W
- Parallel CapabilityNo
- Surge Power6000VA
- WaveformPure sine wave
- Maximum PV Array Power1500W
- MPPT Range @ Operating Voltage30VDC ~ 80VDC
- Maximum PV Array Open Circuit Voltage102VDC
- Maximum Solar Charge Current50A
- AC Charge Current15A
- AC Input Voltage230 VAC
- Dimensions315x400x130mm | 8.5kg
- AC Voltage Regulation (Battery Mode)230VAC ± 5% @ 50/60Hz
- Efficiency93%
- Number of Independent MPP Trackers/Strings Per MPP Tracker1/1
- Operating Temperature0°C – 55°C
- Storage Temperature-15°C – 60°C
