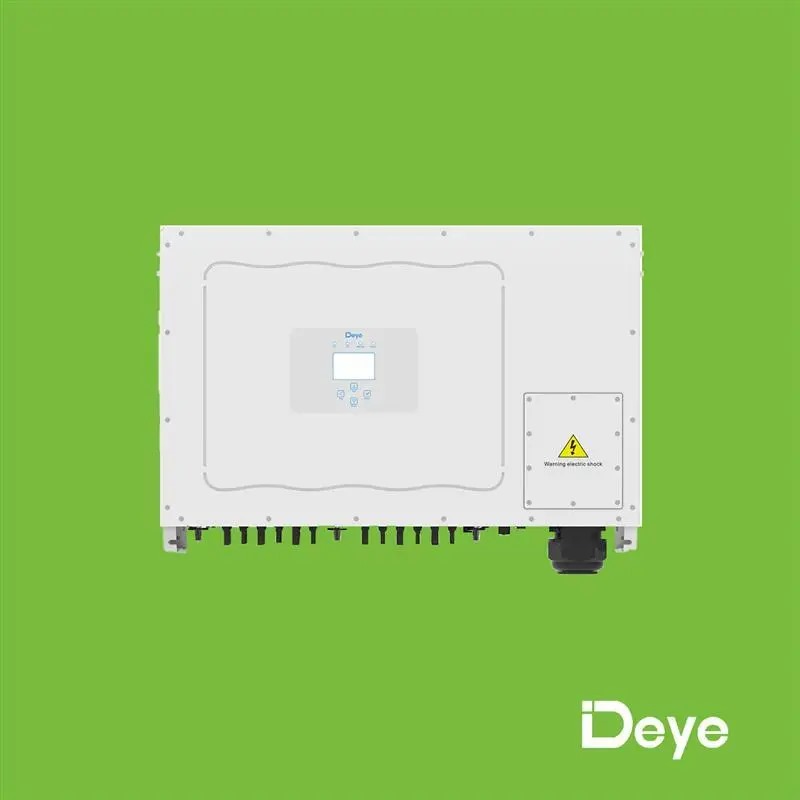

The 80kW Three-Phase Hybrid Solar Inverter combines exceptional performance, safety, and smart functionality for high-capacity solar installations. It delivers up to 98.8% efficiency, ensuring minimal energy loss and maximum ROI. Featuring 6 independent MPPT channels with a wide voltage range of 200–850V, it optimizes solar energy capture under varying conditions. Built with advanced protection systems—including DC reverse polarity, AC overcurrent/overvoltage, short-circuit, thermal, and ground fault protection—it guarantees reliable and safe operation.
The inverter also includes PID mitigation and zero-export functionality to preserve panel performance and meet grid compliance standards. Housed in a durable IP65-rated enclosure, it withstands harsh environments and operates effectively from -25°C to +60°C. Offering extensive communication options such as GPRS, Wi-Fi, Bluetooth, 4G, LAN, RS485, and RS232, it supports remote monitoring and smart grid integration. Despite its robust 81kg build and compact design (824×516×312.7 mm), it maintains excellent grid support and power quality, making it an ideal solution for modern commercial and industrial solar systems.
Specifications:
- Rated AC Output Active Power: 100kW
- Maximum PV Input Power: Up to 150kW
- Grid Connection Form: 3L/N/PE
- Rated Output Voltage: 220/380V, 230/400V
- THD: Total Current Harmonic Distortion <3%
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
- Max. 6 MPP trackers, Max. efficiency up to 98.8%
- Dimensions: 824×516×312.7 mm
- Weight: approximately 81 kg
